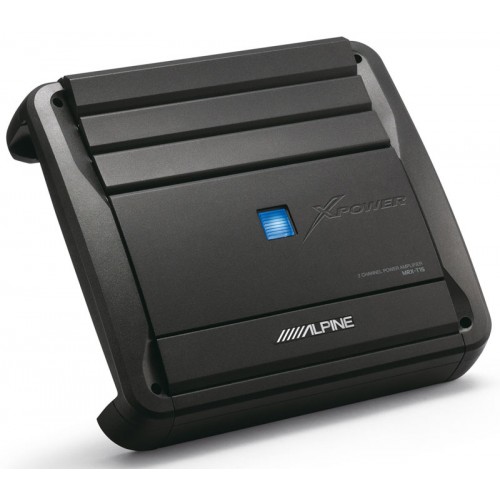

MRX-T15 -XPOWER- 2 Channel Digital Amplifier

Installation

• Terminal Layout: Two-Sided
• Screw Mount / Wire Cover: Integrated Wire and Mounting Screw Terminals

General

• Amplifier Type: Class-D (Digital)
• Channel Design: 2 Channel
• Thermal Control: Thermal Management Control
• Power Supply: MOSFET
• Power Supply Design: DC-DC PWM Power Supply
• Board Circuitry: S.T.A.R. Circuitry
• Current Protection: Over-Current, Over-Voltage and Thermal Protection
• Power Indicator: Top Mounted Blue LED Power Indicator
• 2-Channel Speaker Level Input
• Crossover: Variable Lowpass & Highpass Filter
• Built-in Bass EQ
• Final Outputs: Direct FET
• Board Design: 6-layer Glass Epoxy PC Board
• Continuously Adjustable Gain Control

Max Power Output Ratings

• Total Max Power: 350W

RMS Power Ratings

• Per Channel into 4ohms, 14.4V (≤1%THD+N): 2 x 50W
• Per Channel into 2ohms, 14.4V (≤1%THD+N): 2 x 75W
• Bridged into 4ohms, 14.4V (≤1%THD+N): 1 x 150W

Sound Tuning

• Crossover Frequency (LPF/HPF Selectable): Variable, 50 - 400Hz (-12dB/oct.)
• EQ (Equalizer): Bass EQ (fc=50Hz) 0 to +12dB

Dimensions

• Heat Sink: 190 x 58 x 230 mm
• Footprint: 250 x 58 x 230 mm

General

• Power Requirements: 14.4V DC (11 - 16V)
• Input Sensitivity (RCA Input): 0.2 - 4.0V
• Input Sensitivity (Speaker Level Input): 0.5 - 10V
• Input Impedance: >10k ohms
• Frequency Response (+0, -3dB: 1W into 4 ohms): 5Hz - 45kHz
• Frequency Response (+0, -1dB: 1W into 4 ohms): 7Hz - 30kHz
• THD+N (10W into 4 ohms): <0.02%
• THD+N (Rated Power into 4 ohms): <0.07%
• Damping Factor: >500
• Signal to Noise (Rated Power into 4 ohms): 104dB
• Weight: 2.3kg
